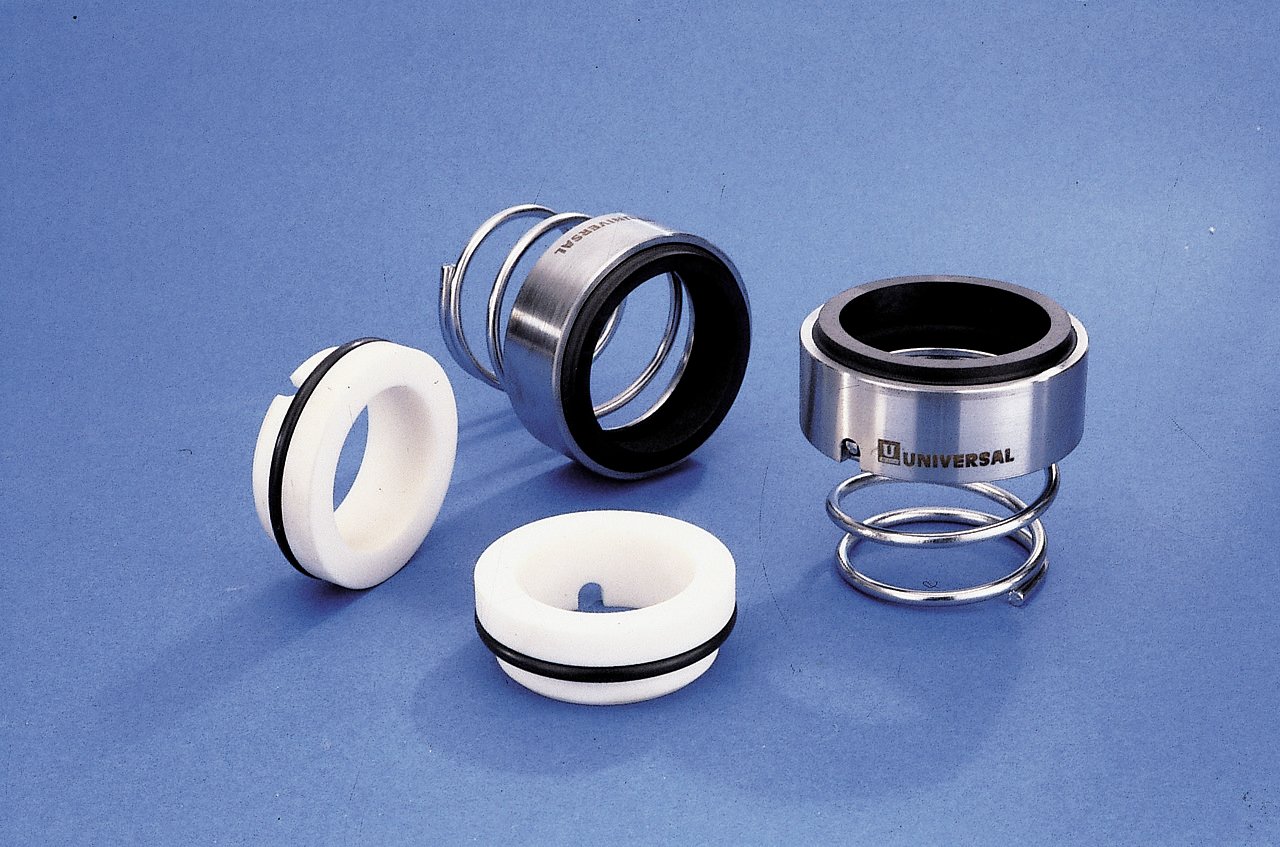

M 23N LAS EMPAQUETADURAS MECHANICAS
Límites de negocios:
Di: 10 - 80 mm P1: 10 Bar t : - 20 ... 220°C Vg : 20 m/sn
Di Da D1 l1 L
10 20 21 15.5 41.0
12 22 23 16.0 41.5
14 24 25 16.5 42.0
16 26 27 18.0 43.5
18 31 33 19.5 47.0
20 34 35 22.0 49.5
22 36 37 21.5 49.0
24 38 39 23.5 51.0
25 39 40 26.5 54.0
28 42 43 26.5 54.0
30 44 45 26.5 54.0
32 46 48 28.5 56.0
33 47 48 28.5 56.0
35 49 50 28.5 56.0
38 54 56 33.5 63.5
40 56 58 36.0 66.0
43 59 61 38.5 68.5
45 61 63 39.5 69.5
48 64 66 46.0 76.0
50 66 70 46.0 77.0
53 69 73 47.0 78.0
55 71 75 49.0 80.0
58 78 78 55.0 86.0
60 79 80 55.0 86.0
63 83 83 55.0 86.0
65 85 85 55.0 86.0
68 88 90 55.0 98.0
70 90 92 57.0 93.0
75 98 97 62.0 98.0
80 103 105 64.0 98.2
